Drupa machines can solve so many problems! The features are not to be missed!

Aesthetic printing machine five features:

The first and most important point is that our machine creatively adopts the process of opening down, running in line with the printing surface as the reference surface and then rotating to the printing position for printing. The distance between the printing surface and the nozzle is consistent and the quality of each book can be maintained at a high level when the printing surface of the book is limited, the printing medium is diverse, and the book has the error caused by the previous process such as cutting and gluing.

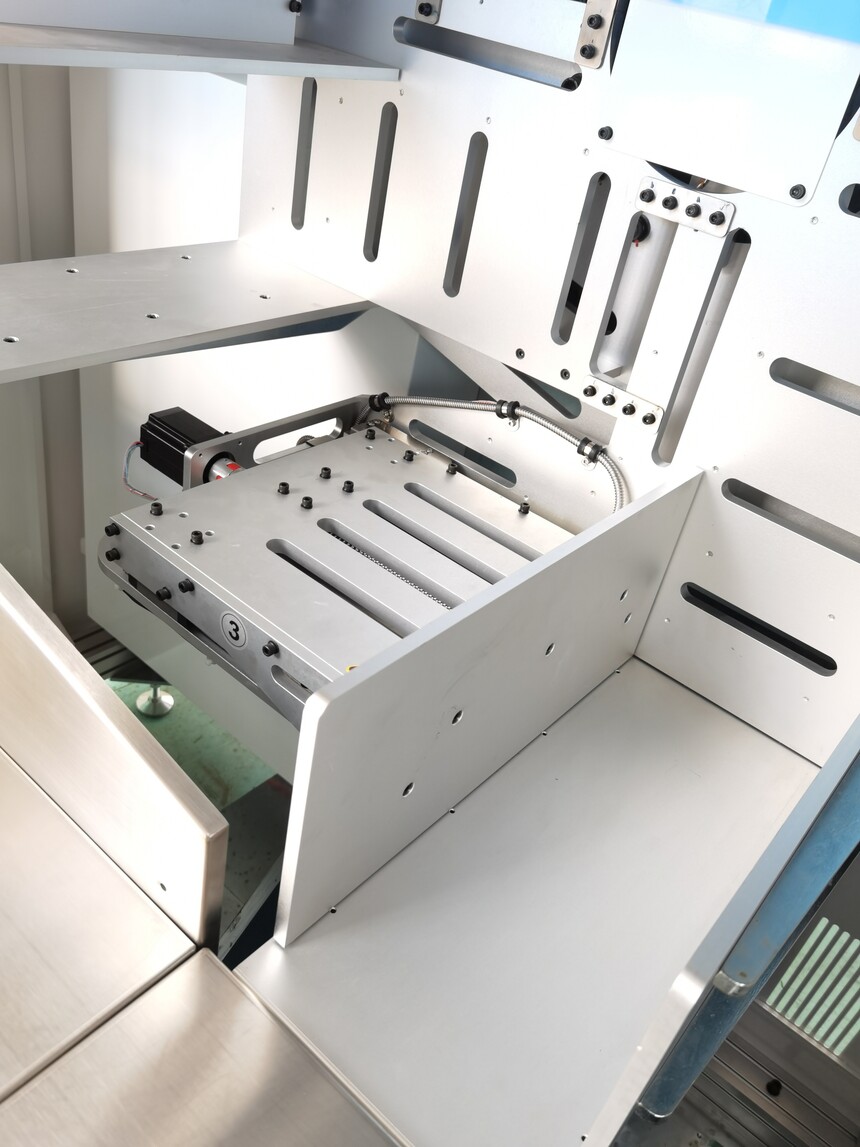

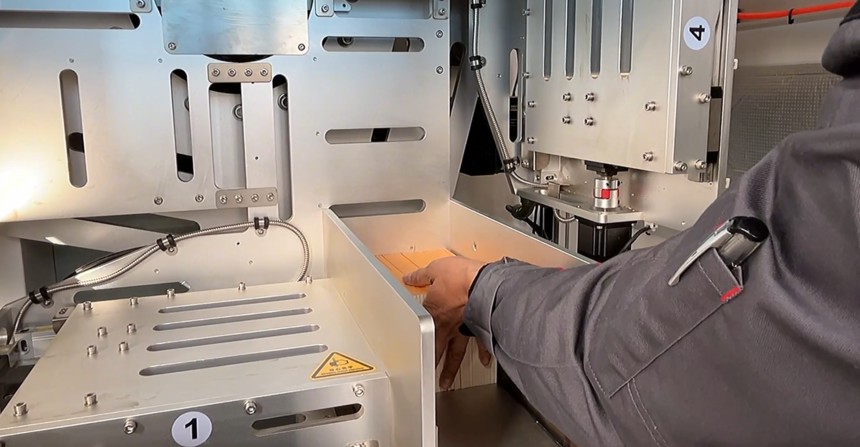

The second point is that we use professional book clips to fix the books, manual assistance to rush the book and other aspects use automatic mode printing and four book clips are carried out in cycles. It is not only efficient and rigorous, but also can avoid the problem of inking caused by the book spreading, thickness difference and other reasons, so as to ensure the normal use of the book.

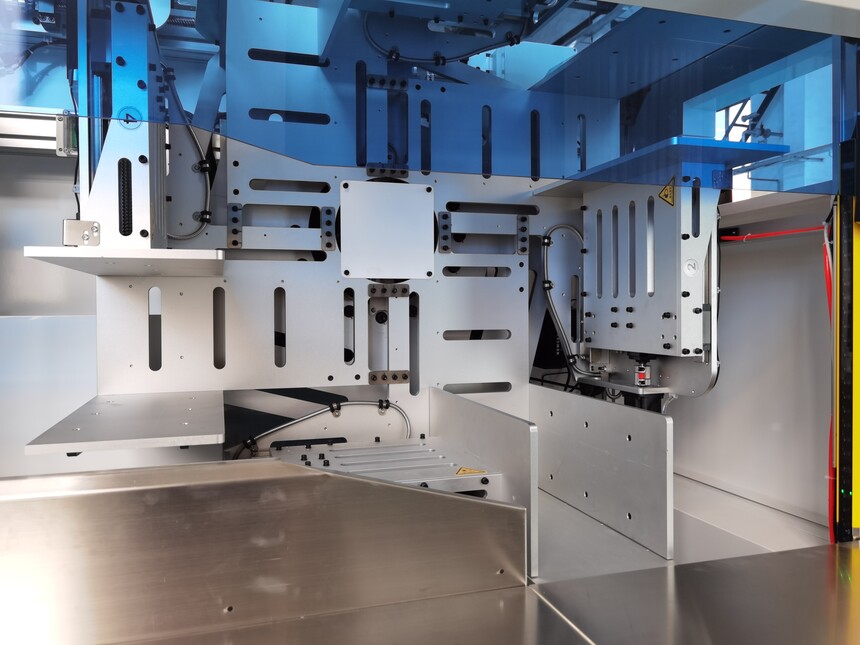

Thirdly, we use the original three-dimensional space operation and production, which is divided into four stations: Aligning position, observing the position, printing position, taking position. 4 groups of rotating fixture which is counterclockwise in turn on the station, intermittent rotate in a 90 degree way. So as to achieve the book aligning and taking, printing surface cleaning, nozzle printing several processes synchronized, reasonable and effective to improve production efficiency. The equipment is produced in a circular rotation so that the operator does not have to move. At the same time, our original working principle of man-machine combination has achieved 24-hour continuous production of machines and the perfect combination of "machines do not wait for people, people do not wait for machines" and the per capita output value is far ahead and the cost advantage is far ahead. The maximum thickness of our book clip is 200mm. The maximum book size is 450*450mm which means the book clip can be placed a lot of books once and fully meet the industrial production needs.

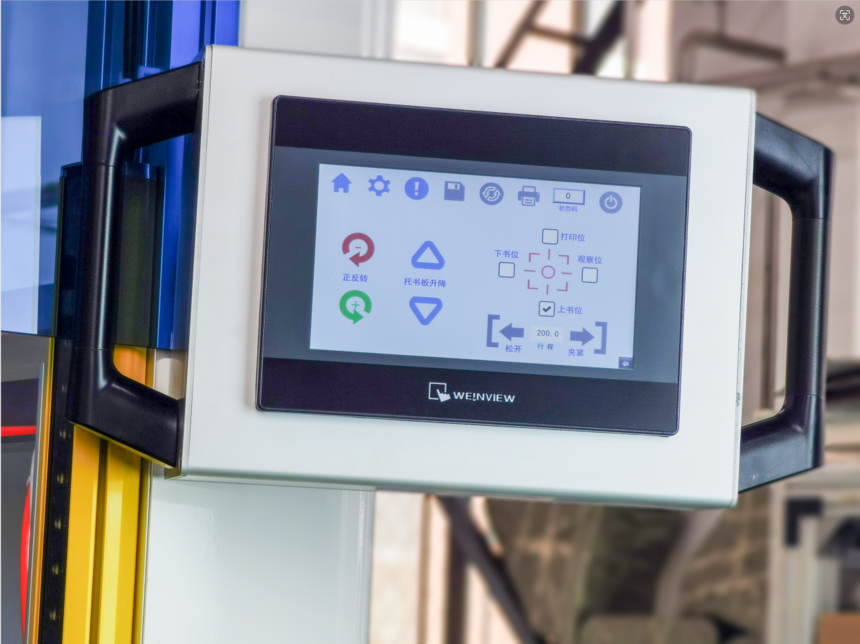

Fourth, according to the characteristics of the new process of book edge printing and its production process, we have developed the book edge printing software. Our operating interface and software use the full Chinese graphical interface, buttons. Fonts are highly enlarged and the interface is easy to understand. An ordinary worker can learn and skillfully operate in 5 minutes. The machine built-in professional book edge printing and typesetting module, typesetting easy. The book edge positioning technology used can be calibrated for the size of the book edge, strictly control the bleeding area, avoid wasting ink, thus reducing production costs, and also realize the accurate positioning of the book edge image, so as to complete the application and printing of the splicing diagram, which can be well and easily realized. Multi-pass printing, no white lines, fine graphics, high yield.

Our software also has professional color management functions, using FM screen technology and icc standard sources for book edge printing, including color curves, to ensure a stable output of color management. Our color adjustment has two levels of professional and user level adjustment, and to ensure the stability of color management, but also with users according to their own needs to quickly adjust the ability.

The fifth feature is that the CMYK four-color water-based pigment ink was independently developed by our company. This is also developed by us for the book edge printing process. It can solve the problems of poor ink absorption, poor saturation, color deviation and so on. Make the book edge printing in the display of beautiful graphics and show environmental protection and health. We are now mainly promoting the pigment ink. First of all, water-based pigment ink has good fluency which is not easy to block the nozzle and make equipment maintenance become simple. Second, it is suitable for commonly used materials for book edge printing. It does not produce odor and does not have a touch impact on the surface of the page.
